Nigel Tao

Handsum: An LQIP Image File Format

Low Quality Image Placeholders (LQIPs) are very small (both in terms of file size and pixel dimensions) images that load very quickly, providing immediate visual feedback while full-resolution images load slowly in the background. They are small-in-file-size enough that it’s feasible to base64-encode and inline them into a web page, minimizing network round-trips and improving page load times.

Existing LQIP techniques include the Blurhash and Thumbhash custom image file formats, as well as just using low-quality JPEG or WebP and very small pixel dimensions. This blog post introduces Handsum, another LQIP custom image file format.

Handsum files are also a fixed size-in-bytes: 48 bytes at the lowest quality setting and 147 bytes at the highest. For a desktop, native or command-line app, if you’re storing your thumbnail images in a database, this lets you use fixed-size columns, which can be faster and simpler to iterate over.

Handsum is based on the Discrete Cosine Transform (DCT), also used by the Blurhash algorithm, the Thumbhash algorithm and JPEG itself. Understanding how the relatively simple Handsum format works should help you if you ever wanted to understand how the relatively complicated JPEG format works (the JPEG specification is a 186-page PDF file; Handsum is simpler).

Web Page Example

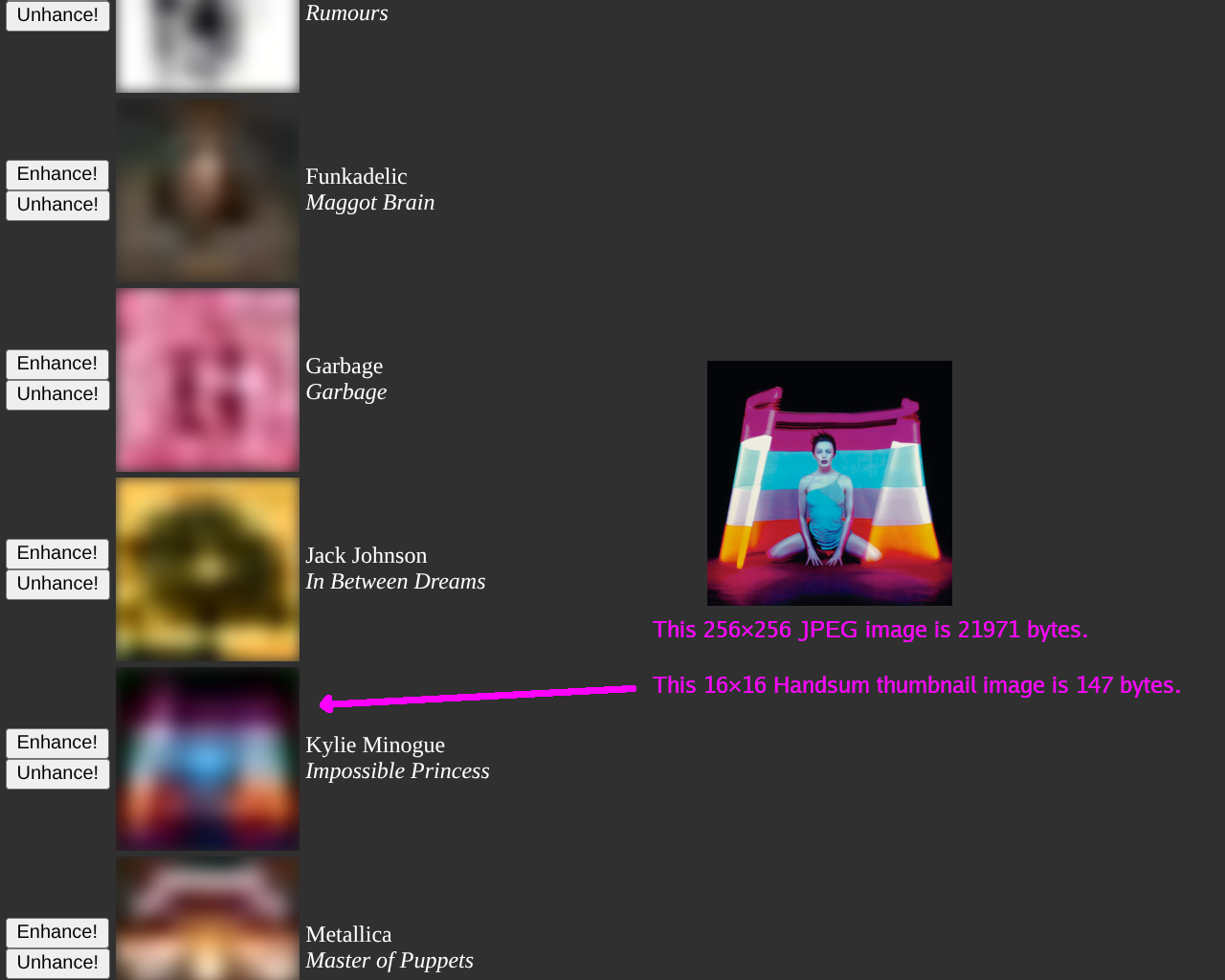

Here’s an annotated screenshot of a Handsum web page demo. It uses a Handsum decoder written in C, compiled to Wasm.

Handsum Wasm

Comparison

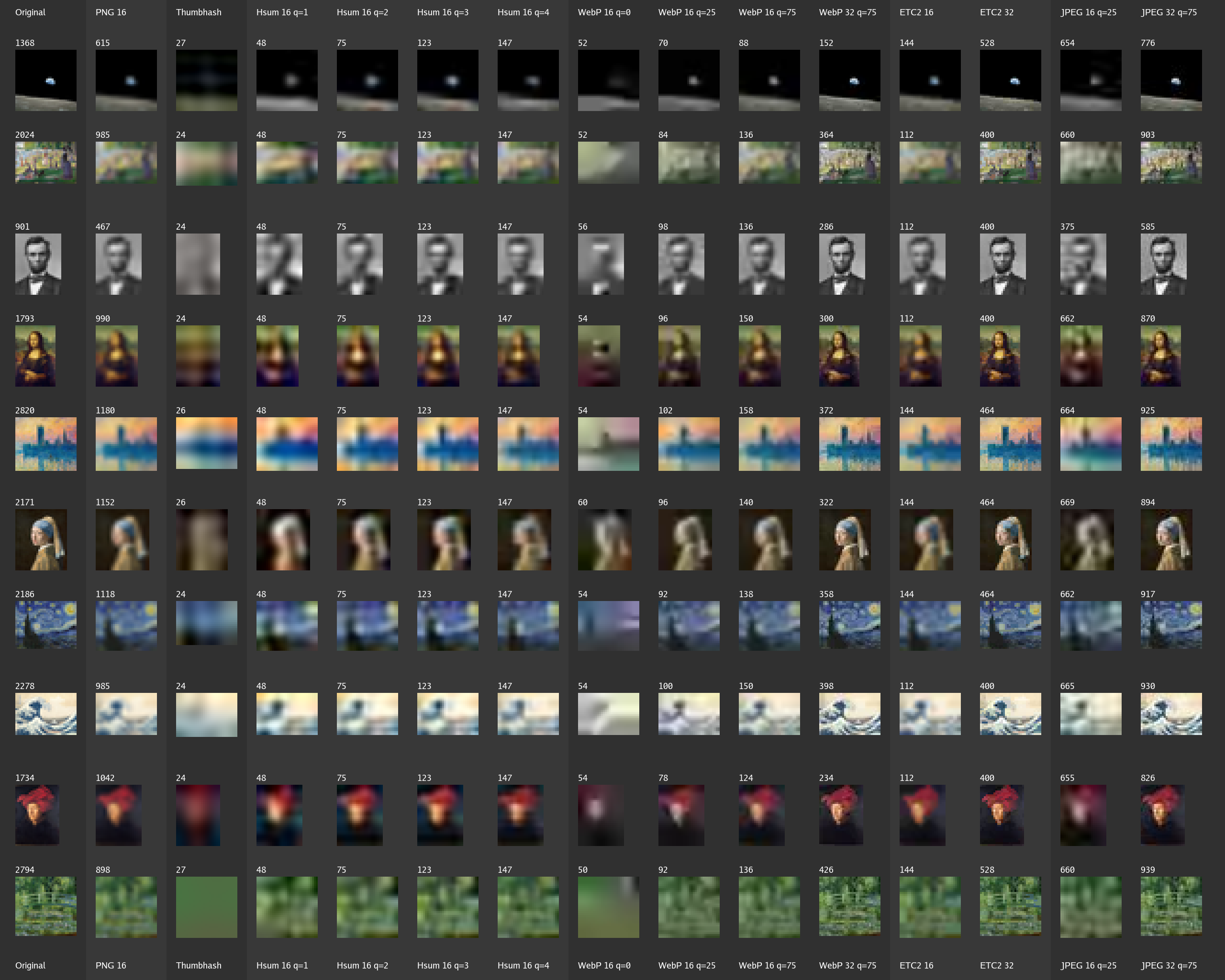

Here’s Handsum compared to PNG, Thumbhash (which is pretty similar to Blurhash), WebP, ETC2 and JPEG. You might want to open this image in its own tab, zoom in and pan around.

Handsum Comparison

There’s a lot going on here. Let’s break it down.

Each row concerns a famous image, as seen on Wikipedia: earthrise, la-grande-jatte, lincoln, mona-lisa, parliament, pearl-earring, starry-night, tsunami, van-eyck, water-lillies.

The first column, “Original”, is the image itself, scaled to fit inside a 32×32 pixel bounding box (while preserving the aspect ratio). For example, the 500×745 pixel Mona Lisa image is resized to 21×32.

Every other column is that original image after round tripping: encoding in some lossy fashion, then decoding.

The numbers (like 1368 or 615) above each cell is the encoded size-in-bytes. More bytes are clearly correlated with more quality. The question is how small (in terms of size-in-bytes) can you get while keeping acceptable quality.

The second column, “PNG 16”, simply scales the image down to fit inside a 16×16 pixel bounding box, encoding it losslessly as a PNG. (Yeah, we could possibly get a slightly smaller size-in-bytes if we pngcrushed it, or used WebP lossless, but it’s probably not that big a difference). Decoding produces a within-16×16 image (e.g. a 11×16 Mona Lisa) which we then upsample (with a bi-linear filter) back to 32 pixels wide or high.

The third column uses the Thumbhash LQIP codec. This produces extremely small encodings, weighing only 24–27 bytes.

The next four columns use Handsum, at each of its four quality settings. The “16” in “Hsum 16 q=1” means that, like “PNG 16”, the codec per se produces something that fits inside a 16×16 bounding box, so we upsample to 32 to get an image that’s better compared with the other cells.

The four columns after that use WebP lossy, based on VP8, at quality 0, 25 and 75. The “WebP 16” columns encode (and thus decode) within-16×16 (and, again, we upsample). The “WebP 32” column encodes within-32×32 image (and no upsampling is needed on decode).

The next two columns use ETC2 (wrapped in a PKM / PACKMAN container), the Ericsson Texture Compression format, mandatory in OpenGL ES 3.0 (Appendix C.1 of the linked spec) and similar to other texture formats like BCn / DXTn / S3TC. ETC2 is designed to be decoded on GPUs (with high parallelization), but you can decode on CPUs too, like any other image format. ETC2 is an interesting and under-appreciated image format, but diving into that is out of scope of this blog post. Again, “16” means encoding the lower-resolution source image and upsampling after decode, “32” means encoding the higher-resolution source image.

The last two columns are JPEG, at quality 75 (which is roughly comparable to, but not exactly the same as, WebP’s “quality = 75”). Again, “16” vs “32” means lower-res-and-upsample vs higher-res.

At Handsum’s q=1 (lowest quality), it’s roughly comparable to a bigger (higher file size), better (better visual quality) Thumbhash. Bigger is in relative terms. The absolute difference is barely 24 bytes. By “better visual quality” I mean that, if you told me to guess the famous image based on the thumbnail, then for Mona Lisa or Girl with a Pearl Earring, I’d say that that’s plausible for Handsum (q=1) but implausible for Thumbhash. Still better than the modern potato art that WebP 16 q=0 produces, though.

At Handsum’s q=4 (highest quality), it’s roughly comparable to WebP Lossy (VP8) and ETC2, for a given size-in-bytes budget. One difference, though, is that at a given quality setting (and at c=3, see below), every Handsum image file is the same size-in-bytes: q=1 files are always 48 bytes, q=2 files are 75, q=3 files are 123 and q=4 files are 147.

If you wanted to make an embedded app for displaying a catalog of artworks (oil paintings, audio records, etc.), you could budget 256 bytes per catalog entry, for example. After assigning 50 bytes each to the artist name and the artwork name (ellipsizing if necessary) and a few more bytes to other metadata (time stamp, track length, etc.), that could leave you 150 bytes for the thumbnail. If you were using WebP for encoding the 16×16 thumbnails, q=75 will fit at or under 150 bytes most of the time, but not all of the time. WebP encoders also typically have a quality setting but not a byte-budget setting, so generating a small-enough (in terms of size-in-bytes) WebP takes a little dance. In contrast, with Handsum q=4, you’ll get 147 bytes every time, guaranteed.

How Handsum Works

Handsum has three color settings (c=1 means Gray, c=3 means RGB or, equivalently, YCbCr and c=4 adds an alpha channel). This blog post only discusses c=3. The reference implementation’s code comments has more details on c=1 and c=4.

This blog post also focuses mostly on the q=4 (highest) quality setting, as it has the simplest DCT implementation.

For any source image, such as a 500×745 pixel Mona Lisa, the encoding algorithm reduces it to 144 bytes of pixel data (at q=4). This becomes 147 after prepending a a 3-byte header: a 15-bit magic signature, a 2-bit color, a 2-bit quality and a 5-bit aspect ratio.

Handsum encoding can be decomposed into a sequence of stages. Decoding is simply reversing the stages in the opposite order, plus a post-processing “Loop Filter” stage (see below). When decoding gets to Stage 0 (Resize), it’s not a full reversal. The decoded image’s longest dimension (width or height) is 16 pixels and the 5-bit aspect ratio (in the header) gives the shorter dimension. Handsum is not a general purpose image format, only a thumbnail image format.

Handsum Stages

Stage 0: Resize

Stage 0

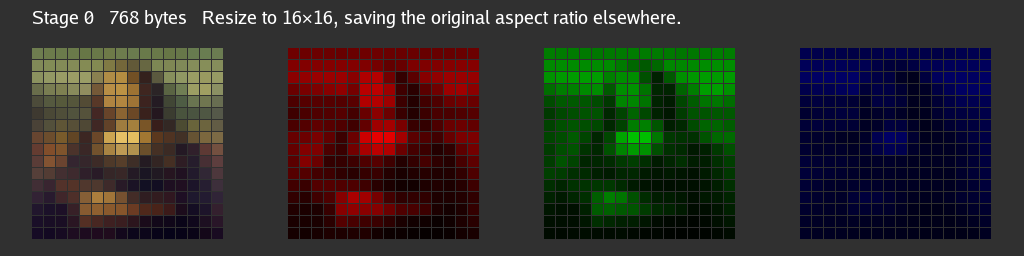

Resizing to 16×16, at 3 bytes RGB (Red, Green, Blue) per pixel, starts us off at 768 bytes of data. Encoding’s later stages operate on this 16×16 workspace regardless of the original source image’s aspect ratio.

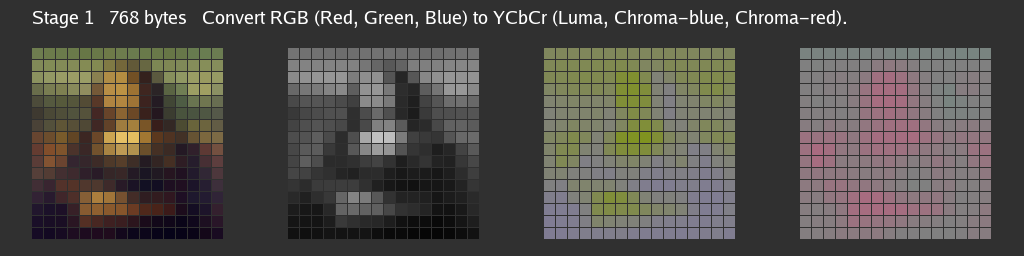

Stage 1: YCbCr Conversion

Stage 1

Converting from RGB to YCbCr uses the same formulae as JPEG / BT.601:

Y  = (+0.2990 * R) + (+0.5870 * G) + (+0.1140 * B)
Cb = (-0.1687 * R) + (-0.3313 * G) + (+0.5000 * B)
Cr = (+0.5000 * R) + (-0.4187 * G) + (-0.0813 * B)

This transformation from 3 bytes RGB per pixel to 3 bytes YCbCr per pixel is lossless (and perfectly reversible) in infinite-precision real numbers, and only slightly lossy in finite-precision computer numbers.

A (theoretically) lossless transformation doesn’t save any bytes per se, as we’re still at 3×16×16 = 768. Linear algebra enthusiasts would recognize this as a (lossless) change of basis. But this sets us up for later stages to better compress the 16×16 image.

Compression means bringing that 768 number down. But, for a fixed-size-in-bytes output (768 / 144 is a 5.333× compression ratio), lowering that number necessitates discarding (or losing, in the “lossy compression” sense) information. Switching to YCbCr gives us better opportunities to discard information that people mostly don’t notice.

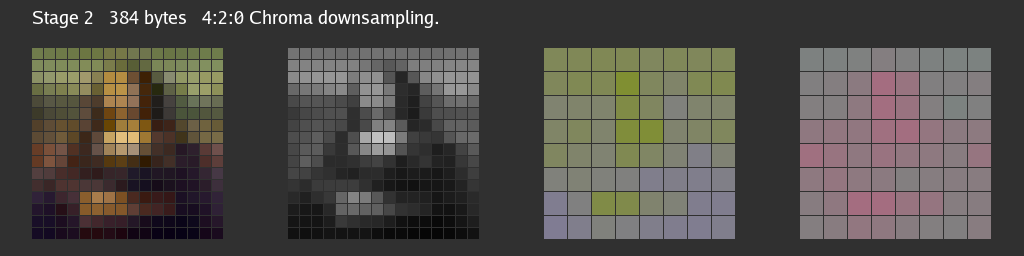

Stage 2: Chroma Downsampling

Stage 2

Human vision is more sensitive to luma and less sensitive to chroma, so we can be more aggressive in discarding chroma channel information (to achieve better compression ratios). This stage simply drops 75% of the two chroma channels’ data (which is 50% of the overall 768), downsampling Cb and Cr from 16×16 to 8×8. We’re now at (16×16 + 8×8 + 8×8) = 384 total bytes, a 50% saving.

This is the classic 4:2:0 chroma subsampling, as used by WebP images and is also very popular for JPEG images. For those who already know how JPEG works, Handsum’s 16×16 pixel workspace is essentially one JPEG 4:2:0 MCU (Minimum Coded Unit).

Stage 3: DCT

Stage 3

We slice up our 16×16 luma and 8×8 chroma grids into 2×2 blocks, 4 samples per block, and apply the Discrete Cosine Transform to each block independently. This transforms 4 samples to 4 samples, per block. Like Stage 1, this is just a change of basis. Like Stage 1, this doesn’t lower the byte count per se (and would be a lossless transform, with infinite-precision real numbers), but again, it unlocks later opportunities.

Handsum q=4 uses 2×2 blocks (and so 4 coefficients per block). Lower Handsum quality settings use 4×4 or 8×8 blocks (and JPEG’s DCT also uses 8×8). DCT is applicable to any of those block sizes, but the DCT formulae are simplest for 2×2 and we’ll go into more detail about that further below.

Stage 4: Quantization

Stage 4

We started off using 8 bits (the half-open range 0 .. 256) per RGB sample. Quantization from 8 to 4 bits (the half-open range 0 .. 15) is conceptually as simple as doing value >>= 4 on the encode side and value *= 0x11 on the decode side.

In practice, Handsum’s quantization is a little more complicated:

JPEG also quantizes its post-DCT coefficients, but JPEG’s quantization factors are configurable. When you pass a -quality 25 or -quality 90 setting to libjpeg, what you’re actually doing is adjusting the quantization factors (and those factors are written into the JPEG file). Bigger quantization factors discard more information but they also lead to smaller post-quantization numbers, and longer runs of zero-valued numbers, which compress better.

Handsum’s quality setting is different. Handsum’s quantization factors are hard-coded and, by design, its output is a fixed size-in-bytes, so it does not use some of JPEG’s entropy-compression techniques, like Run-Length Encoding or Huffman Coding. Anyway, dropping half of the bits (the least significant half) here gives us another 50% saving, going from 384 to 192 bytes.

Stage 5: High-Frequency Elimination

Stage 5

The final stage takes the 4 post-DCT coefficients in each 2×2 block and simply drops one of them for another 25% saving, going from 192 to 144 bytes.

For Handsum q=3, we’d drop 6 out of 16 4×4 coefficients (38%). For q=2, 10 out of 16 4×4 coefficients (63%). For q=1 (lowest quality), 49 out of 64 8×8 coefficients (77%). In all cases, Handsum retains low-frequency components and discards high-frequency components. Those familiar with JPEG’s “zig-zag coefficient ordering” might find the prioritization familiar.

The point of doing the DCT earlier is that, for q=4, this fourth coefficient controls a high-frequency “checkerboard” pattern (per 2×2 block) that is usually not that noticable. In case you missed it (comparing the Stage 4 and Stage 5 images), here’s where to spot the difference.

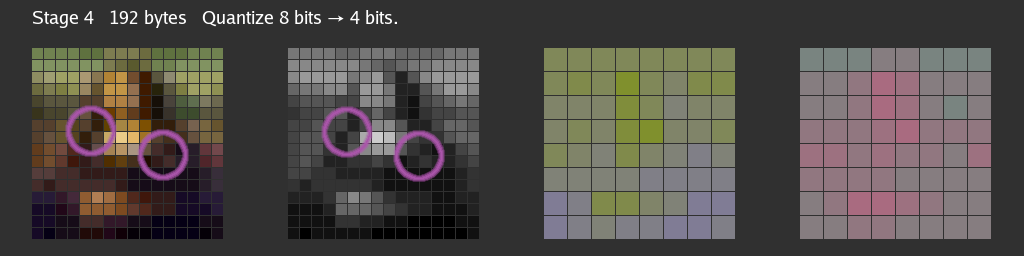

Stage 4 vs 5

In contrast, if we didn’t do the DCT stage, which transforms from the (x, y) spatial domain to the (u, v) frequency domain, and dropped one out of every four pre-DCT (not post-DCT) samples, the visual impact would be very obvious (and bad).

Stage bad

Discrete Cosine Transform

DCT is the trickiest concept of the Handsum codec. It is a change of basis, which means transforming some values (in our case, 4 values), as measured along some axes, into the same number of different values along different axes. For example, in an 2-D strategy game with hexagonal tiles, you could transform coordinates from the classic (x, y) axes, 90 degress apart, to more counting-hexes-friendly coordinates whose axes are 120 degrees apart. Both coordinate pairs represent the same tile but use different numbers.

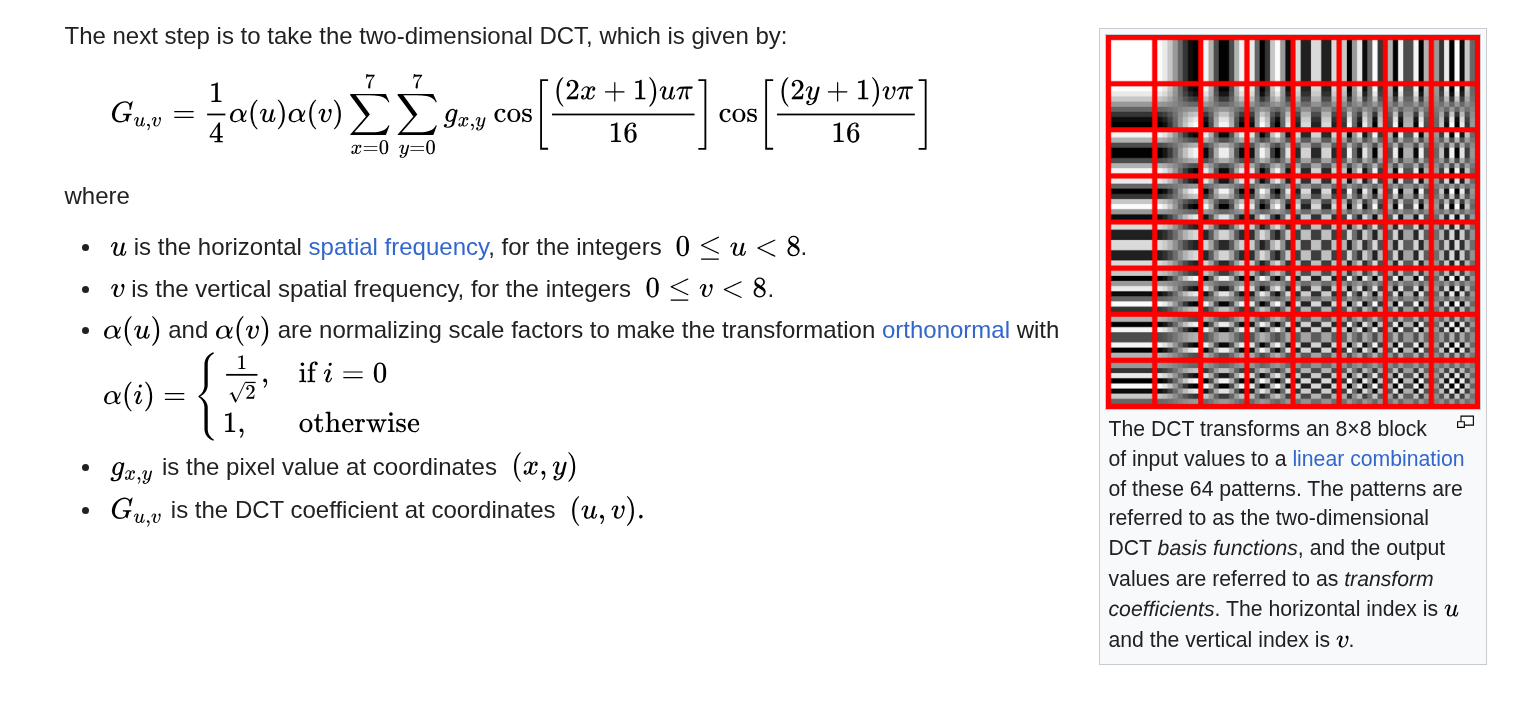

For 2×2 DCT, the axes being measured are more abstract. The DCT section of Wikipedia’s JPEG page gives this daunting formula for the 8×8 DCT, which transforms gxy values in the spatial domain to Guv values in the frequency domain (whose u and v axes Wikipedia correctly but confusingly calls the horizontal and vertical spatial frequency).

FDCT Formulae

Let’s keep that weird-looking red-bordered table to the side for now. We’ll get back to it later.

“The spatial domain” just means that our four input values, which we can label g00, g01, g10 and g11, correspond to the top-left, top-right, bottom-left and bottom-right samples in our 2×2 block.

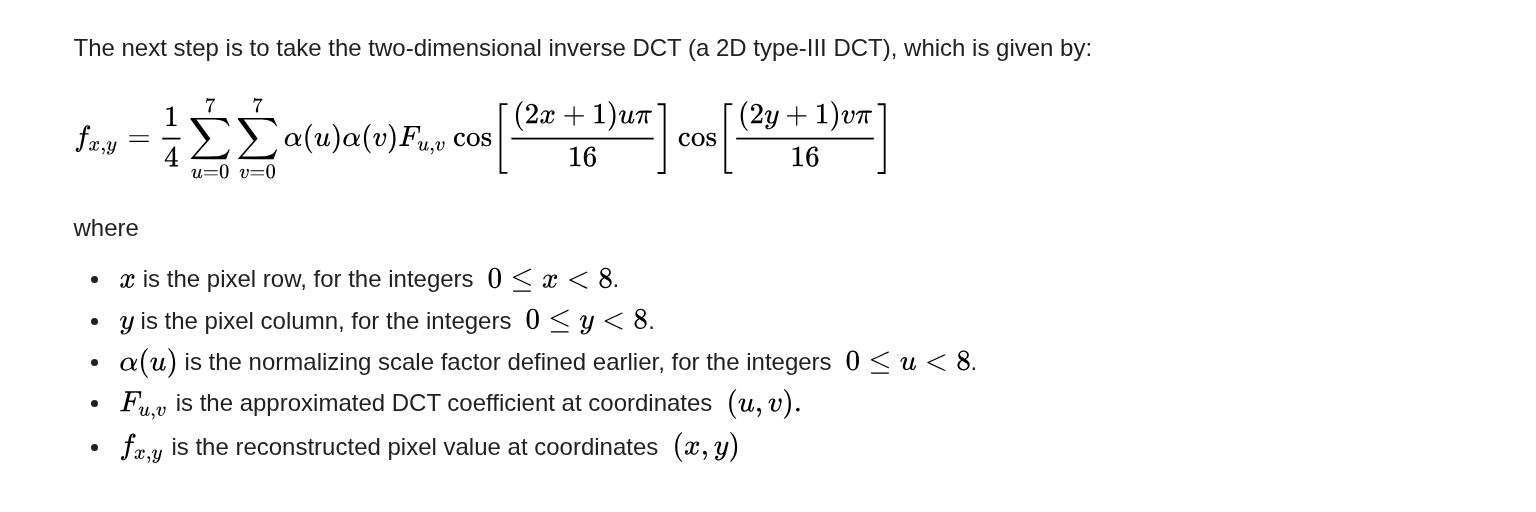

Going from gxy to Guv is the Forward DCT (the FDCT), used on encoding. Other encoding stages can be lossy, so on decode, we start with Fuv values that approximate Guv, and further down on the same Wikipedia page is an equally daunting formula for the Inverse DCT (the IDCT), used on decoding, to recover the fxy values that approximate the original image’s gxy values.

IDCT Formulae

The cosine expressions in the two formulae are the same, but the FDCT loops over x and y (for a given u and v) and the IDCT loops over u and v (for a given x and y).

2×2 Discrete Cosine Transform

For a 2×2 DCT, x, y, u and v are all either 0 or 1. Furthermore, cos(0) equals 1 and the other cosine terms are all (±1/√2). The FDCT formulae simplify dramatically.

G00 = (+g00 + g01 + g10 + g11) / 2
G01 = (+g00 - g01 + g10 - g11) / 2
G10 = (+g00 + g01 - g10 - g11) / 2
G11 = (+g00 - g01 - g10 + g11) / 2

In the gxy (or fxy) spatial domain, it’s easy to picture 00, 01, 10, 11 as top-vs-bottom and left-vs-right. In the Guv (or Fuv) frequency domain, it’s less obvious how to think of these 00, 01, 10, 11 subscripts.

One thing to note is that G00 is simply the average (scaled by two) of the four pre-DCT values. If you had to pick only one value that could summarize all four inputs, G00 is pretty good. G00 is also known as the DC (Direct Current) DCT component and all other Guv values are AC (Alternating Current) components. As for how to visualize the AC components, let’s first also simplify the IDCT formulae:

f00 = (+F00 + F01 + F10 + F11) / 2
f01 = (+F00 - F01 + F10 - F11) / 2
f10 = (+F00 + F01 - F10 - F11) / 2
f11 = (+F00 - F01 - F10 + F11) / 2

In a beautiful symmetry, the IDCT formulae are exactly the same as the FDCT formulae (with different variable names). This coincidence is special to the 2×2 DCT and is not true in general, for the 4×4 DCT, 8×8 DCT or other block sizes.

But also, it’s now apparent that the larger that the F01 AC component is, the larger f00 and f10 are (which are the two left-most samples of the block) and the smaller f01 and f11 are (the two right-most samples of the block). F01 is like a “horizontal gradient” controller. Similar, F10 is a “vertical gradient” and F11 is a “checkerboard pattern” (exactly like what’s highlighted in the Stage 5 discussion, above).

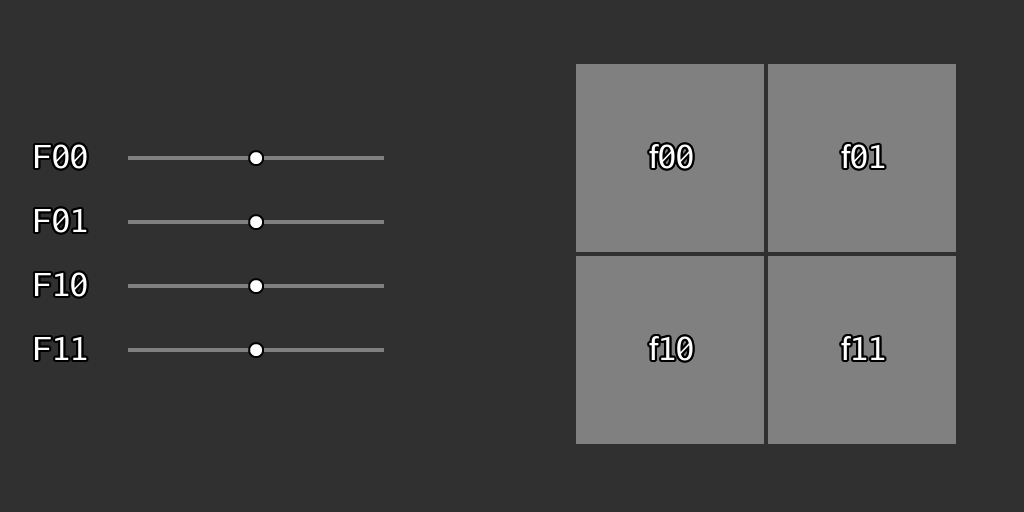

You could imagine an “audio mixer” with “faders” for the F00, F01, F10 and F11 inputs, where moving these Fuv sliders around affects the fxy sample output.

DCT 2×2 Sliders

Each Fuv component has a 2×2 impulse response function, which is how the fxy samples react to a Fuv change (an impulse). That 2×2 grid is a basis function, and you can plot a 2×2 grid of these basis functions:

DCT 2×2 Basis Functions

For 2×2, this visualization is pretty trivial, but for the 8×8 DCT used by JPEG, this is the red-bordered table on the previously-mentioned JPEG/DCT Wikipedia page, with “low frequency” components (basis functions) in the top-left-in-u-v-space of the visualization and “high frequency” components in the other corner.

Alex Dowad has an interactive 8×8 DCT page, where you can toggle on and off individual Fuv components and see how it impacts the reconstructed fxy values.

You could make the same red-bordered visualization of basis-functions for 4×4 or 16×16 DCT, as Ekrem Fidan did in his DCT and DFT for 1D and 2D Signals blog post.

Coming back to Handsum, the 2×2 DCT transforms four values (top-left, top-right, bottom-left, bottom-right) into four different but equivalent values (average, horizontal, vertical, checkerboard). While people would definitely notice missing bottom-right pixels, they don’t notice missing checkerboard overlays as much.

Loop Filter

One consequence of cutting a larger image into smaller blocks and encoding each block independently, more or less, is that the block seams are often visible on decode. Low quality JPEGs often show their 8×8 block boundaries, and similarly for ETC2 and its 4×4 block boundaries, magnified and highlighted below:

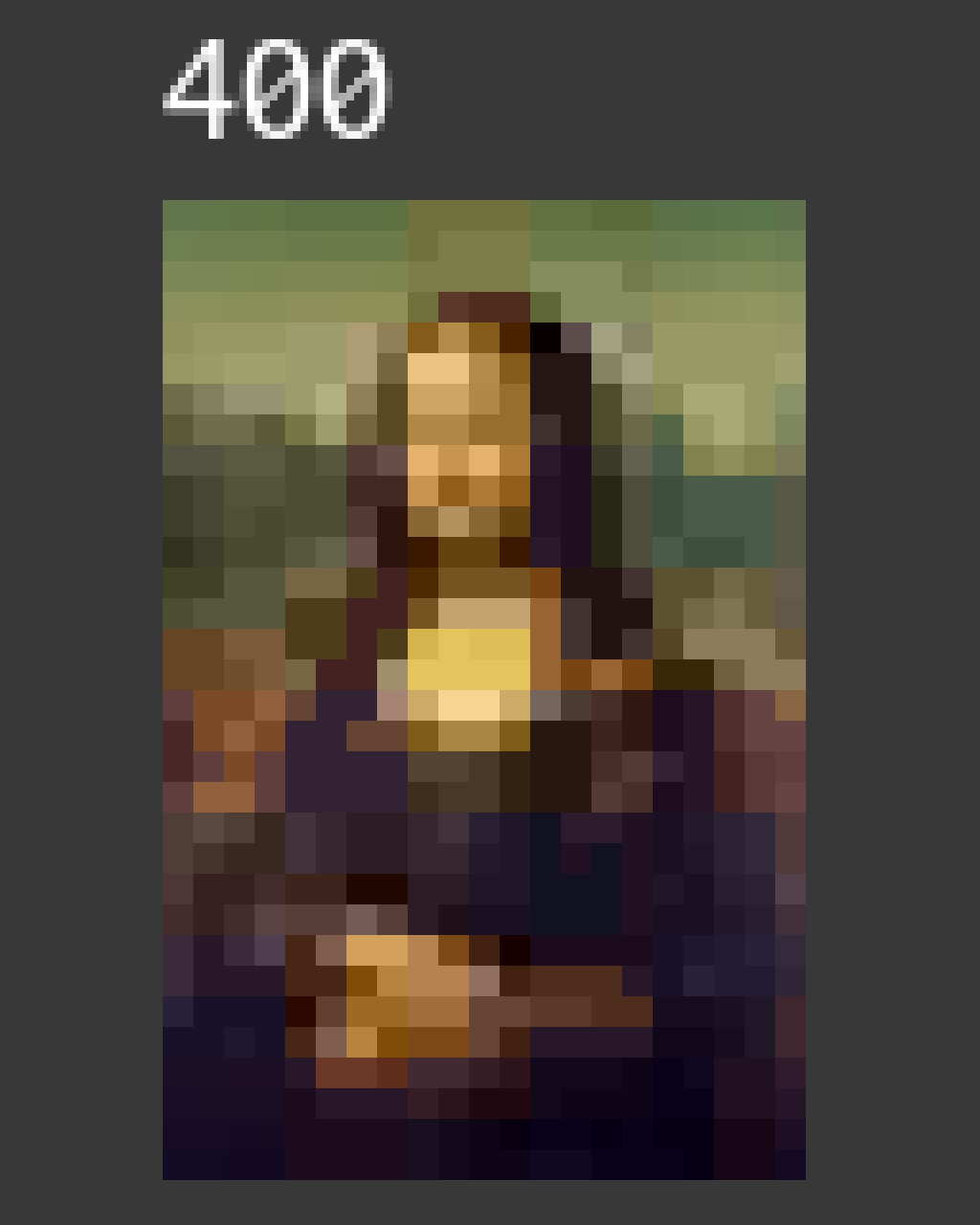

ETC2 4×4 blocks

WebP also cuts into blocks, but mitigates these visual seams by a post-processing step, after decoding reverses every encoding stage, that blurs the pixels that are adjacent to block boundaries. WebP calls this the VP8 Loop Filter. Handsum does something similar but unconditional, where WebP’s filters are thresholded. For Handsum q=4’s 2×2 blocks, every pixel (that’s not on an edge) is on a block boundary.

For a simplified example, suppose we have a 1-dimensional row of 8 reconstructed samples, the inner 6 of which are adjacent to a “:” block boundary. The 1-dimensional loop filter blurs across the boundaries using a 3:1 ratio (and Handsum’s 2-dimensional loop filter uses 9:3:3:1).

Before:   a    b    :  c       d    :  e       f    :  g      h
After:    a   ¾b+¼c : ¾c+¼b   ¾d+¼e : ¾e+¼d   ¾f+¼g : ¾g+¼f   h

Handsum Loop Filter

A 3:1 (or 9:3:3:1) filter regresses to the mean. The post-processed samples are smoother but also milder. The colors aren’t as vibrant after filtering, but we can compensate somewhat for this, by using artificially small quantization “bucket widths” on the encoder side, which by itself would exaggerate any color contrast and so restores some of the vibrancy lost to the Loop Filter.

Handsum Implementations

The reference implementation is the github.com/google/wuffs/lib/handsum Go library, which encodes and decodes all c= and q= settings.

The handsum command line tool, which you run like handsum -encode foobar.png > foobar.c3q4.handsum, uses that reference implementation.

The Wuffs standard library, available as memory-safe transpiled-to-C code, can decode all c= and q= settings.

The simpler basic-handsum-decode C library only decodes the c=3, q=4 variant, abbreviated as c3q4. This powers the Wasm demo linked at the top.

Studying JPEG

Handsum is a very simplified subset of JPEG (plus a Loop Filter). If you’re curious to learn more about how JPEG (the most popular image format on the web) actually works, this Further Reading section has enough links to keep you occupied.

Web Server

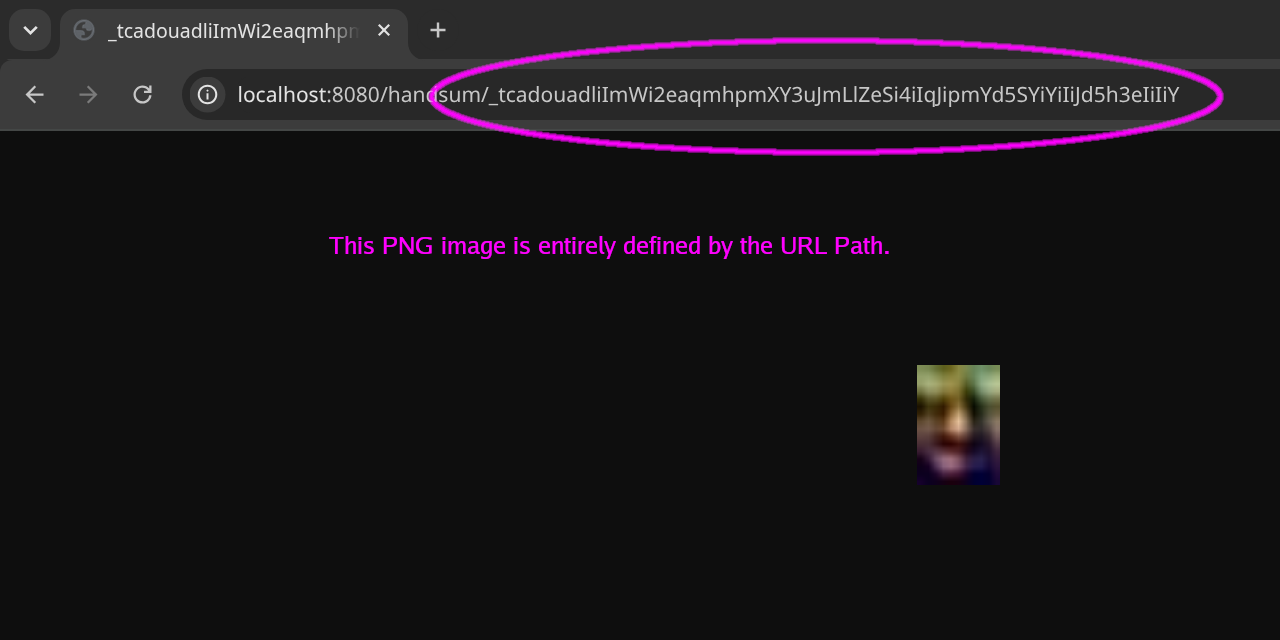

One final bit of fun: you can run a web server (or a FUSE server) that generates favicon-sized PNG images on demand, entirely defined by the Handsum q=1 data encoded in the URL Path.

Handsum Web Server

Conclusion

If you’re already using Blurhash, Thumbhash, ETC2 or WebP and it works for you, that’s great. Handsum isn’t vastly superior to any of those, just another alternative in the toolbox of LQIP file formats. Better quality than Blurhash and Thumbhash, at bigger (and fixed) file sizes. They’re all DCT-based and the “Handsum” name is a pun on “a bigger Thumbhash” and, of course, it rhymes with “handsome”.

Published: 2026-07-08
